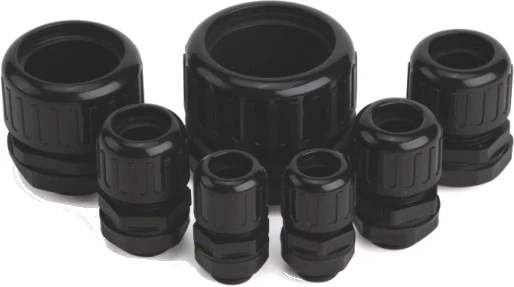

PA nylon, flame-retardant PP, PE tubing and plastic-coated flexible conduit, with nine fitting families

Conduit & Tubing Fittings

Product Intro

The inner locking buckle and body are purpose-designed so that mounting and dismounting are done by simple plugging and pulling — no tools.

Specifications

Thread
Metric, PG and G(PF)
Body material
UL-approved nylon PA66, UL94V-2
Protection
IP68-10
Working temperature
Static −40 °C to 100 °C (120 °C momentary); dynamic −20 °C to 80 °C (100 °C momentary)
Colour
Black and grey; other colours on request

Quick connector · Metric

Part No.Hose sizeThreadThread ODThread IDThread lengthOverall heightQty/pack
ET-SM-G-M 10-10AD10.0M10x1.010.06.510.023.0100
ET-SM-G-M 12-10AD10.0M12x1.512.06.510.025.0100
ET-SM-G-M 16-10AD10.0M16x1.516.06.510.025.0100
ET-SM-G-M 10-11.6AD 11.6M10x1.010.08.010.023.0100
ET-SM-G-M 12-11.6AD10.6M12x1.512.08.010.025.0100
ET-SM-G-M 12-13AD13.0M12x1.512.07.511.025.0100
ET-SM-G-M 16-13AD13.0M16x1.516.010.010.025.0100
MG-SM-G-M 18-13AD13.0M18x1.518.010.010.025.0100
ET-SM-G-M20-13AD13.0M20x1.520.010.010.025.0100
ET-SM-G-M 16-15.8AD 15.8M16x1.516.011.510.027.5100
ET-SM-G-M 18-15.8AD 15.8M18x1.518.012.010.027.5100
ET-SM-G-M20-15.8AD 15.8M20x1.520.012.010.027.550
ET-SM-G-M20-18.5AD18.8M20x1.520.014.312.028.050
ET-SM-G-M20-21.2AD21.2M20x1.520.015.013.031.550
ET-SM-G-M24-21.2AD21.2M24x1.524.018.013.031.550
ET-SM-G-M25-21.2AD21.2M25x1.525.017.013.027.050
ET-SM-G-M25-25AD25.0M25x1.525.019.514.029.050
ET-SM-G-M25-28.5AD28.5M25x1.525.020.014.034.050
ET-SM-G-M27-28.5AD28.5M27x2.027.020.514.034.050
ET-SM-G-M30-28.5AD28.5M30x2.030.022.014.034.050
ET-SM-G-M32-28.5AD28.5M32x1.532.022.014.034.050
ET-SM-G-M32-32AD32.0M32x1.532.022.014.034.020
ET-SM-G-M32-34.5AD34.5M32x1.532.027.014.036.020
ET-SM-G-M36-34.5AD34.5M36x2.036.029.014.036.020
ET-SM-G-M40-34.5AD34.5M40x1.540.029.014.036.020
ET-SM-G-M40-42.5AD42.5M40x1.540.034.014.038.010
ET-SM-G-M42-42.5AD42.5M42x1.542.036.014.038.010
ET-SM-G-M48-42.5AD42.5M48x2.048.036.014.038.010
ET-SM-G-M50-54.5AD54.5M50x1.550.044.015.539.010
ET-SM-G-M60-54.5AD54.5M60x2.060.048.015.539.05
ET-SM-G-M63-54.5AD54.5M63x1.563.048.015.539.05
ET-SM-G-PG7-10AD10.0PG712.36.510.023.0100
ET-SM-G-PG7-11.6AD 11.6PG712.38.010.023.0100
ET-SM-G-PG9-13AD13.0PG915.010.010.025.0100
ET-SM-G-PG 11-15.8AD 15.8PG1118.412.010.027.5100
ET-SM-G-PG 13.5-15.8AD 15.8PG13.520.212.510.028.0100
ET-SM-G-PG 13.5-18.5AD18.5PG13.520.214.312.028.0100
ET-SM-G-PG 16-21.2AD21.2PG1622.317.013.032.050
ET-SM-G-PG21-28.5AD28.5PG2128.023.014.034.050
ET-SM-G-PG29-32AD32.0PG2936.726.014.036.020
ET-SM-G-PG29-34.5AD34.5PG2936.729.014.036.020
ET-SM-G-PG36-42.5AD42.5PG3646.736.014.038.520
ET-SM-G-PG48-54.5AD54.5PG4859.048.015.040.010
ET-SM-G3/8-15.8AD 15.8G3/8"16.612.010.028.0100
ET-SM-G1/2-21.2AD21.2G1/2"20.915.013.031.050
ET-SM-G1/2-25AD25.0G1/2"20.916.013.035.050
ET-SM-G3/4-28.5AD28.5G3/4"26.020.014.035.050
ET-SM-G1-34.5AD34.5G1"33.027.014.036.020
ET-SM-G2-54.5AD54.5G2"29.648.015.539.05

A selection shown. Contact us for the full part list and drawings.

Quick connector · PG / G

Part No.Fits hoseThreadThread ODICEFQty/pack
ET-SM-W-M12-10AD10.0M12X1.512.07.010.032.018.0100
ET-SM-W-M16-10AD10.0M16X1.516.010.010.032.020.0100
ET-SM-W-M12-11.6AD11.6M12X1.512.07.010.032.018.0100
ET-SM-W-M16-11.6AD11.6M16X1.516.010.010.034.520.0100
ET-SM-W-M16-13AD13.0M16X1.516.010.010.034.520.0100
ET-SM-W-M18-13AD13.0M18X1.518.010.010.035.024.0100
ET-SM-W-M20-13AD13.0M20X1.520.011.010.035.024.0100
ET-SM-W-M16-15.8AD15.8M16X1.516.011.010.037.524.0100
ET-SM-W-M 18-15.8AD15.8M18X1.518.011.010.037.524.0100
ET-SM-W-M20.15.8AD15.8M20X1.520.012.010.037.524.050
ET-SM-W-M20-18.5AD18.5M20X1.520.015.011.043.527.050
ET-SM-W-M20-21.2AD21.2M20X1.520.015.013.049.031.050
ET-SM-W-M24-21.2AD21.2M24X1.524.017.013.049.031.050
ET-SM-W-M25-21.2AD21.2M25X1.525.017.013.049.031.050
ET-SM-W-M25-25AD25.0M25X1.525.019.513.052.032.050
ET-SM-W-M25-28.5AD28.5M25X1.525.019.513.057.034.050
ET-SM-W-M27-28.5AD28.5M27X2.027.023.013.057.034.050
ET-SM-W-M30-28.5AD28.5M30X2.030.023.013.057.034.050
ET-SM-W-M32-28.5AD28.5M32X1.532.023.013.065.043.050
ET-SM-W-M32-32AD32.0M32X1.532.027.014.565.043.020
ET-SM-W-M32-34.5AD34.5M32X1.532.027.014.565.043.020
ET-SM-W-M36-34.5AD34.5M36X2.036.029.014.564.043.020
ET-SM-W-M40-34.5AD34.5M40X1.540.029.014.564.043.020
ET-SM-W-M40-42.5AD42.5M40X1.540.034.014.572.050.010
ET-SM-W-M48-42.5AD42.5M48X2.048.036.014.572.050.010
ET-SM-W-M50-54.5AD54.5M50X1.550.044.016.084.064.05
ET-SM-W-M60-54.5ADS4.5M60X1.560.048.016.084.064.05
ET-SM-W-M63-54.5AD54.5M63X1.563.048.016.084.064.05
ET-SM-W-PG7-10AD10.0PG712.57.010.032.018.0100
ET-SM-W-PG7-11.6AD 11.6PG712.57.010.032.018.0100
ET-SM-W-PG9-13AD13.0PG915.210.010.034.020.0100
ET-SM-W-PG 11-15.8AD 15.8PG1118.612.010.037.524.3100
ET-SM-W-PG13.5-15.8AD 15.8PG13.520.414.010.037.524.0100
ET-SM-W-PG 13.5-18.5AD 18.5PG13.520.414.011.043.527.050
ET-SM-W-PG 16-21.2AD21.2PG1622.515.013.048.031.050
ET-SM-W-PG21-28.5AD28.5PG2128.322.013.057.034.050
ET-SM-W-PG29-32AD32.0PG2937.029.014.064.043.020
ET-SM-W-PG29-34.5AD34.5PG2937.029.014.064.043.020
ET-SM-W-PG36-42.5AD42.5PG3647.038.014.072.050.010
ET-SM-W-PG48-54.5AD54.5PG4859.350.015.584.064.05
ET-SM-W-3/8-1313.0G3/8"16.710.012.032.020.0100
ET-SM-W-1/2-21.221.2G1/2"21.011.013.049.031.050
ET-SM-W-1/2-2525.0G1/2"21.011.013.052.032.050
ET-SM-W-3/4-28.528.5G3/4"26.421.013.557.034.050
ET-SM-W-1-34.534.5G1"33.028.015.065.043.020

A selection shown. Contact us for the full part list and drawings.

PA nylon bellows

Hose sizePart No.ID × ODBend radiusQty/pack
AD10.0ET-PA-10.06.5 x 10.016100
AD11.6ET-PA-11.68.0 x 11.616100
AD 13.0ET-PA-13.010.0 x 13.020100
AD 15.8ET-PA-15.812.0 x 15.830100
AD 18.5ET-PA-18.514.3 x 18.540100
AD21.2ET-PA-21.217.0 x 21.245100
AD25.0ET-PA-25.020.0 x 25.04550
AD28.5ET-PA-28.523.0 x 28.55050
AD34.5ET-PA-34.529.0 x 34.56050
AD42.5ET-PA-42.536.0 x 42.57050
AD54.5ET-PA-54.548.0 x 54.59025

A selection shown. Contact us for the full part list and drawings.

PA nylon bellows (cont.)

Hose sizePart No.ID × ODBend radiusQty/pack
AD 10.0ETT-PP-10.06.5 x 10.016
AD 11.6ETT-PP-11.68.0 x 11.616
AD 13.0ETT-PP-13.010.0 x 13.020
AD 15.8ETT-PP-15.812.0 x 15.830
AD 18.5ET-PP-18.514.3 x 18.540
AD21.2ET-PP-21.217.0 x 21.245
AD25.0ETT-PP-25.020.0 x 25.045
AD28.5ETT-PP-28.523.0 x 28.550
AD34.5ETT-PP-34.529.0 x 34.560
AD42.5ETT-PP-42.536.0 x 42.570
AD54.5ETT-PP-54.548.0 x 54.590

A selection shown. Contact us for the full part list and drawings.

Flame-retardant polyamide conduit

Hose sizePart No.ID × ODBend radiusQty/pack
AD10.06.5 x 10.016100
AD11.68.0 x 11.616100
AD13.010.0 x 13.020100
AD15.812.0 x 15.830100
AD18.514.3 x 18.540100
AD21.217.0 x 21.245100
AD25.020.0 x 25.04550
AD28.523.0 x 28.55050
AD34.529.0 x 34.56050
AD42.536.0 x 42.57050
AD54.548.0 x 54.59025

A selection shown. Contact us for the full part list and drawings.

Flame-retardant polyamide conduit (cont.)

Hose sizePart No.ID × ODBend radiusQty/pack
AD 10.06.5 x 10.016100
AD 11.68.0 x 11.616100
AD 13.010.0 x 13.020100
AD 15.812.0 x 15.830100
AD 18.514.3 x 18.540100
AD21.217.0 x 21.245100
AD25.020.0 x 25.04550
AD28.523.0 x 28.55050
AD34.529.0 x 34.56050
AD42.536.0 x 42.57050
AD54.548.0 x 54.59025

A selection shown. Contact us for the full part list and drawings.
